Steps to create a provider hosted add-in in SharePoint Online and host in Microsoft Azure using Microsoft Azure Web Apps method

sharepoint online provider hosted add-in
InfoPath alternatives for form designing SharePoint

In this post we will discuss how we can create a provider hosted add-in using visual studio 2015 for SharePoint online site and how we can host it in Microsoft Azure.

If you are new to SharePoint Add-in. then you can check this article for more information.

SharePoint Provider Hosted Add-ins contains components that are deployed and hosted outside SharePoint farm. Here we will discuss how we can host in Microsoft Azure.

Follow below steps:
Open visual studio 2015 and then File -> New Project. Then in the New Project dialog box, choose Templates -> Visual C# -> Office/SharePoint and from there choose App for SharePoint like below. Give a name and make sure .Net Framework version should be chosen 4.5.

SharePoint online create provider hosted add-in using visual studio 2015
SharePoint online create provider hosted add-in using visual studio 2015

Also read:
– SharePoint Online Site Workflow and Initiation Form Parameters example using SharePoint designer workflow

– Introduction to cloud computing and Microsoft Azure

– How to use Deferred when done in JavaScript Object Model in SharePoint 2013 to make asynchronous to synchronous call?

Then choose a SharePoint developer site and then choose Provider-hosted like below. You can see below article to know how we can create developer site in SharePoint.

how to create provider hosted add-in using visual studio 2015 in SharePoint Online
how to create provider hosted add-in using visual studio 2015 in SharePoint Online

Then it will ask to give credentials for the developer site and then it will automatically select the SharePoint version like below:

Deploy provider hosted add-in SharePoint online using visual studio 2015
Deploy provider hosted add-in SharePoint online using visual studio 2015

Then in the web project type, select whether you want to create a ASP.NET web Forms Application or ASP.NET MVC Web Application like below. Here we will choose ASP.NET MVC Web Application.

provider hosted app in sharepoint 2013
provider hosted app in sharepoint 2013

Then choose “Use Windows Azure Access Control Service (for SharePoint cloud apps)” in the Configure authentication settings like below:

provider hosted app in sharepoint 2013 online
provider hosted app in sharepoint 2013 online

Visual studio will take sometime and will create two projects one (Add-in and another one is the ASP.NET MVC Web project) like below.

provider hosted app in sharepoint 2013 deployment
provider hosted app in sharepoint 2013 deployment

Here we are not modifying the default code which is displaying the current user name (presented in HomeController.cs file).

Now we will try to publish the provider hosted-add-in to Microsoft Azure.

Right click on the Web project and click on Publish like below:

provider hosted app in sharepoint 2013 online step by step
provider hosted app in sharepoint 2013 online step by step

This will open the Publish Web dialog box which looks like below:

provider hosted app in sharepoint 2013 on premise
provider hosted app in sharepoint 2013 on premise

Here we will use the “Microsoft Azure Web Apps” option to deploy the project to Azure.

Before proceeding further we need to create a web site in Microsoft Azure. You can follow the below article for the same.

– Steps to create a web site in Microsoft Azure for SharePoint Online

Once the web site is ready follow below step.

Open the _layouts/15/appregnew.aspx url in the developer site.

There click on the Generate button for the Client Id and Client Secret fields. Then give a title and Domain put the web site which we have created in Azure (without https://). And the Redirect URI put the web site url, make sure to give in https:

Here the page looks like below:

sharepoint provider hosted app visual studio 2013
sharepoint provider hosted app visual studio 2013

Then open the web.config file and replace the ClientId and ClientSecret which we have generated in the above page.

It looks like below:

provider hosted app in sharepoint 2013 authentication
provider hosted app in sharepoint 2013 authentication

Now right click on the web project and click on Publish. Then choose the Microsoft Azure Web Apps option like below:

provider hosted app in sharepoint 2016
provider hosted app in sharepoint 2016

Then click on OK.

Then login to your Azure account, Once you login, it will populate all the existing web apps. Choose the one which we have created in the above step. Here also you can directly create a web app, if you have not created before.

provider hosted app in sharepoint 2016 deployment
provider hosted app in sharepoint 2016 deployment

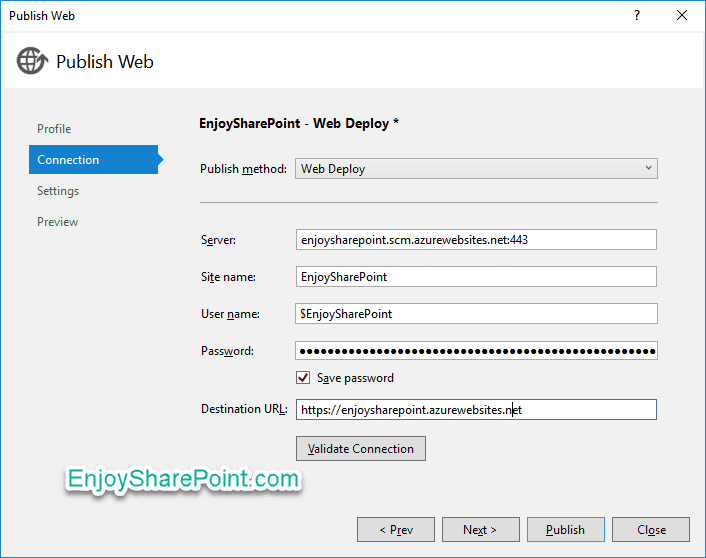

This will open the below screen. Give the destination url as https://enjoysharepoint.azurewebsites.net as shown like below:

SharePoint provider hosted apps visual studio
SharePoint provider hosted apps visual studio

Click on Next.

Then click on Next and finally click on Publish like below:

SharePoint provider hosted apps visual studio 2015
SharePoint provider hosted apps visual studio 2015

It will take some time to publish.

Once it is successfully deployed, Now right click on the Addin project like below:

visual studio 2015 create provider hosted apps sharepoint
visual studio 2015 create provider hosted apps sharepoint

Here click on the Edit button

SharePoint provider hosted add in visual studio
SharePoint provider hosted add in visual studio

Here in the Web Deploy dialog box give the clientid and client secret like below:

SharePoint provider hosted add in visual studio 2015
SharePoint provider hosted add in visual studio 2015

For the safe side click on the Deploy yur web project button. Now once it is deployed successfully, click on the Pakag the app button which is presented below:

visual studio 2015 create provider hosted add in sharepoint
visual studio 2015 create provider hosted add in sharepoint

This will show the URl and ClientId, here click on Finish button which will generate the app file.

sharepoint online provider hosted add-in
sharepoint online provider hosted add-in

Now we can upload the .app file into the app catalog site or in the developer site. The .app file will get generated in the below location.
C:\Users\<username>\Documents\visual studio 2015\Projects\OurDemoPoviderHostedAddin\OurDemoPoviderHostedAddin\bin\Debug\app.publish\1.0.0.0

Here I have uploaded to the Apps in Testing library in my developer site.

SharePoint 2013 provider hosted add-in visual studio
SharePoint 2013 provider hosted add-in visual studio

Once it is installed successfully, when you click on the app, the Azure site will open and it will display the user name like below.

 Steps to create a provider hosted add-in in SharePoint Online and host in Microsoft Azure using Microsoft Azure Web Apps method
Steps to create a provider hosted add-in in SharePoint Online and host in Microsoft Azure using Microsoft Azure Web Apps method

Hope this will be helpful.
